pyrecorder

build status python 3.6 license apache

logo

Github: https://github.com/anyoptimization/pyrecorder

Installation

The framework is available at the PyPi Repository:

pip install -U pyrecorder

Matplotlib

Please note that the example below are using the vp80 codec to create a video which can be played in a browser and also this documentation. Nevertheless, without specifing the codec mp4v is used by default.

Video

[26]:
import numpy as np
import matplotlib.pyplot as plt

from pyrecorder.recorder import Recorder
from pyrecorder.writers.video import Video
from pyrecorder.converters.matplotlib import Matplotlib

# create a writer that takes the
writer = Video("example.webm", codec='vp80')

# use the with statement to close the recorder when done
with Recorder(writer) as rec:

    # use black background for this plot
    plt.style.use('dark_background')

    # record 10 different snapshots
    for t in range(50, 500, 5):

        a = np.arange(t) * 0.1
        plt.plot(a * np.sin(a), a * np.cos(a))
        plt.xlim(-50, 50)
        plt.ylim(-50, 50)
        plt.axis('off')

        # use the record to store the current plot
        rec.record()

# revert to default settings for other plots
plt.style.use('default')

When the code has finished, the video has been written to the specified filename example.mp4. Let us look what has been recorded:

[27]:
display("example.webm")

For this example the default settings have been used and the global drawing space of Matplotlib is recorded. Let us look at another example with a few modifications:

[28]:
import numpy as np
import matplotlib.pyplot as plt

from pyrecorder.recorder import Recorder
from pyrecorder.writers.video import Video
from pyrecorder.converters.matplotlib import Matplotlib

# initialize the converter which is creates an image when `record()` is called
converter = Matplotlib(dpi=120)

writer = Video("example2.webm", codec='vp80')

rec = Recorder(writer, converter=converter)

for t in range(10):

    # let us create a local figure object with two sub figures
    fig, (ax1, ax2) = plt.subplots(2, figsize=(3, 4))

    X = np.random.random((100, 2))
    ax1.scatter(X[:, 0], X[:, 1], color="green")

    X = np.random.random((100, 2))
    ax2.scatter(X[:, 0], X[:, 1], color="red")

    # fix the size of figure and legends
    fig.tight_layout()

    # take a snapshot the specific figure object with the recorder
    rec.record(fig=fig)


rec.close()
[29]:
display("example2.webm")

GIF

[30]:
import matplotlib.pyplot as plt
import numpy as np

from pyrecorder.recorder import Recorder
from pyrecorder.writers.gif import GIF

with Recorder(GIF("example.gif", duration=0.2)) as rec:

    for t in range(0, 200, 5):

        x = np.linspace(0, 4, 100)
        y = np.sin(2 * np.pi * (x - 0.01 * t))
        plt.plot(x, y)

        rec.record()

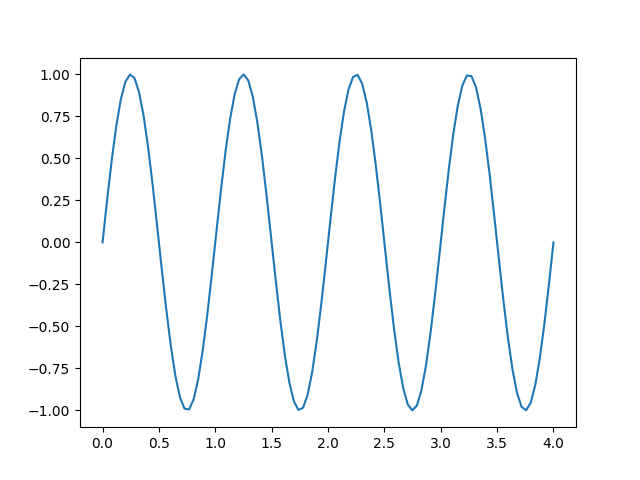

My GIF

Contact

Feel free to contact me if you have any question:

Julian Blank (blankjul [at] egr.msu.edu)
Michigan State University
Computational Optimization and Innovation Laboratory (COIN)
East Lansing, MI 48824, USA
